F# Books

May 28, 2013 1 Comment

As part of my quest to learn a functional language, I picked 4 books about F#. Being that I am a beginner, I dove right into this one:

Instead of the ‘hello world’ examples that you normally expect with a beginning book, it was a survey of the language constructs – and the code examples were not designed to teach rather they were used to illustrate a point –a subtle but important distinction.

After 3 chapters, I put that book down and picked up this book:

Now this is a great book. It explains things in a progressive and hands-on fashion. It’s too bad they called it “Expert” in the title – because it is actually a beginning book. In fact, I would recommend ditching the Beginning F# book completely and diving right into the Expert F# book if you want to learn the language.

Filed under Book Review, F#

Machine Learning for Hackers: Using F#

May 21, 2013 1 Comment

I decided I wanted to learn more about F# so my Road Alert project. I started by watching this great video. After reviewing it a couple of times, I realized that I could try and do chapter 1 of Machine Learning for Hackers using F#.

Since I already had the data from this blog post, I just had to follow Luca’s example. I wrote the following code in an F# project in Visual Studio 2012.

open System.IO
type UFOLibrary() =
    member this.GetDetailData() =
        let path = "C:\Users\Jamie\Documents\Visual Studio 2012\Projects\MachineLearningWithFSharp_Solution\Tff.MachineLearningWithFSharp.Chapter01\ufo_awesome.txt"
        let fileStream = new FileStream(path,FileMode.Open,FileAccess.Read)
        let streamReader = new StreamReader(fileStream)
        let contents = streamReader.ReadToEnd()
        let usStates = [|"AL";"AK";"AZ";"AR";"CA";"CO";"CT";"DE";"DC";"FL";"GA";"HI";"ID";"IL";"IN";"IA";
                         "KS";"KY";"LA";"ME";"MD";"MA";"MI";"MN";"MS";"MO";"MT";"NE";"NV";"NH";"NJ";"NM";
                         "NY";"NC";"ND";"OH";"OK";"OR";"PA";"RI";"SC";"SD";"TN";"TX";"UT";"VT";"VA";"WA";
                          "WV";"WI";"WY"|]
        let cleanContents =
            contents.Split([|'\n'|])
            |> Seq.map(fun line -> line.Split([|'\t'|]))
            Seq.head()

I then added a C# console project to the solution and added the following code:

static void Main(string[] args)
{
    Console.WriteLine("Start");
    UFOLibrary ufoLibrary = new UFOLibrary();

    foreach (String currentString in ufoLibrary.GetDetailData())
    {
        Console.WriteLine(currentString);
    }
    Console.WriteLine("End");
    Console.ReadKey();
}

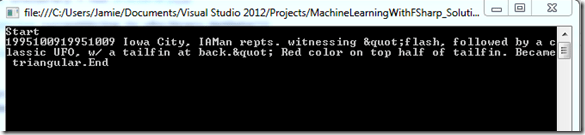

Sure enough, when I hit F5

How cool is it to call F# code from a C# project and it just works? I feel a whole new world of possibilites just opened to me.

I then went back to the book and saw that they used the head function in R that returns the top 10 rows of data. The F# head only returns the top 1 so I had to make the following change to my F# to duplicate the effect:

let cleanContents =
    contents.Split([|'\n'|])
    |> Seq.map(fun line -> line.Split([|'\t'|]))
    |> Seq.take(10)

I then had to remove the defective rows that had malformed data. To do this, I went back to the F# code and changed it to this

let cleanContents =
    contents.Split([|'\n'|])
    |> Seq.map(fun line -> line.Split([|'\t'|]))

I then went back to the Console app to change it like this:

Console.WriteLine("Start");
UFOLibrary ufoLibrary = new UFOLibrary();
IEnumerable<String> rows = ufoLibrary.GetDetailData();
Console.WriteLine(String.Format("Number of rows: {0}", rows.Count()));
Console.WriteLine("End");
Console.ReadKey();

And I see this when I hit F5

So now I have a baseline of 61,394 rows.

My 1st step is to removed rows that do not have 6 columns. To do that, I changed my code to this:

Console.WriteLine("Start");
UFOLibrary ufoLibrary = new UFOLibrary();
IEnumerable<String> rows = ufoLibrary.GetDetailData();
Console.WriteLine(String.Format("Number of rows: {0}", rows.Count()));
Console.WriteLine("End");
Console.ReadKey();

and when I hit F5, I can see that the number of records has dropped:

I then want to removed the bad date fields the way they did it in the book – all dates have to be 8 characters in length, no more, no less.

Going back to the F# code, I added this line

|> Seq.filter(fun values -> values.[0].Length = 8)

and sure enough, fewer records in my dataset:

And finally applying the same logic to the second column – which is also a date

|> Seq.filter(fun values -> values.[1].Length = 8)

Which raises eyebrows, I assume there would be some malformed data in the 2ndcolumn independent of the 1st column, but I guess not.

I then wanted to convert the 1st two columns from strings into DateTimes. Going back to Luca’s examples, I did this:

|> Seq.map(fun values ->
    System.DateTime.Parse(values.[0]),
    System.DateTime.Parse(values.[1]),
    values.[2],
    values.[2],
    values.[3],
    values.[4],
    values.[5])

Interestingly, I then went back to my Console application and got this

Error 1 Cannot implicitly convert type ‘System.Collections.Generic.IEnumerable<System.Tuple<System.DateTime,System.DateTime,string,string,string,string>>’ to ‘System.Collections.Generic.IEnumerable<string[]>’. An explicit conversion exists (are you missing a cast?)

So I then did this:

   1: var rows = ufoLibrary.GetData();

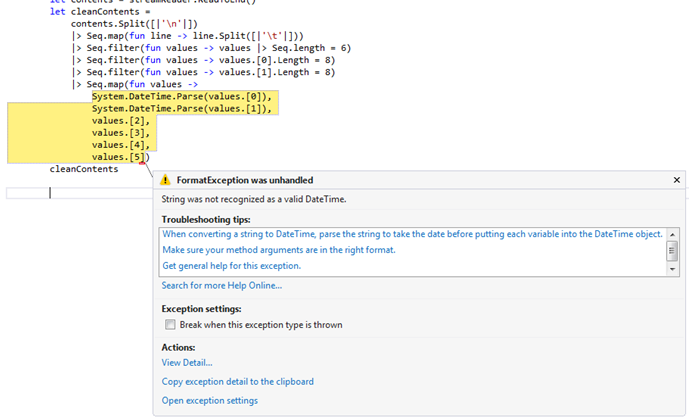

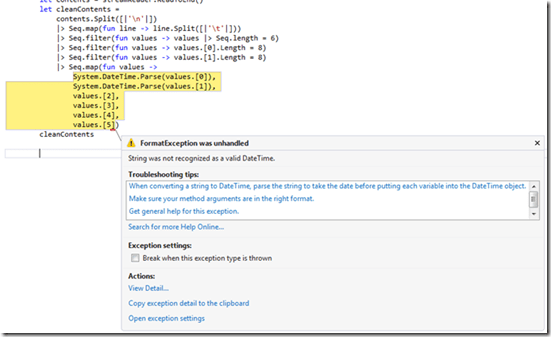

so I can compile again. When I ran it, I got his exception:

So it looks like R can handle YYYYMMDD while F# DateTime.Parse() can not. So I went back to The different ways to parse in .NET I changed the parsing to this:

System.DateTime.ParseExact(values.[0],"yyyymmdd",System.Globalization.CultureInfo.InvariantCulture),
System.DateTime.ParseExact(values.[1],"yyyymmdd",System.Globalization.CultureInfo.InvariantCulture),

When I ran it, I got this:

Which I am not sure is progress. so then it hit me that the data in the strings might be out of bounds – for example a month of “13”. So I added the following filters to the dataset:

|> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(0,4)) > 1900)
|> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(0,4)) > 1900)
|> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(0,4)) < 2100)
|> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(0,4)) < 2100)
|> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(4,2)) > 0)
|> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(4,2)) > 0)
|> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(4,2)) <= 12)
|> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(4,2)) <= 12)
|> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(6,2)) > 0)
|> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(6,2)) > 0)
|> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(6,2)) <= 31)
|> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(6,2)) <= 31)

Sure enough, now when I run it:

Which matches what the book’s R example.

I then wanted to match what the book does in terms of cleaning the city,state field (column). We are only interested in data from the united states that follows the “City,State” pattern. The R examples does some conditional logic to clean this data, up, which I didn’t want to do in F#.

So I added this filter than split the City,State column and checked that the state value is only 2 characters in length R uses the “Clean” keyword to remove white space, F# uses “Trim()”

|> Seq.filter(fun values -> values.[2].Split(',').[1].Trim().Length = 2)

Next, the book limits the location values to only the Unites States. To do that, it creates a list of values of all 50 postal codes (lower case) to then compare the state portion of the location field. To that end, I added a string array like so:

let usStates = [|"AL";"AK";"AZ";"AR";"CA";"CO";"CT";"DE";"DC";"FL";"GA";"HI";"ID";"IL";"IN";"IA";
                 "KS";"KY";"LA";"ME";"MD";"MA";"MI";"MN";"MS";"MO";"MT";"NE";"NV";"NH";"NJ";"NM";
                 "NY";"NC";"ND";"OH";"OK";"OR";"PA";"RI";"SC";"SD";"TN";"TX";"UT";"VT";"VA";"WA";
                  "WV";"WI";"WY"|]

I then add this filter (took me about 45 minutes to figure out):

|> Seq.filter(fun values -> Seq.exists(fun elem -> elem = values.[2].Split(',').[1].Trim().ToUpperInvariant()) usStates)

So now I am 1/2 way done with Chapter 1 – the data has now been cleaned and is ready to be analyzed. Here is the code that I have so far:

member this.GetDetailData() =
    let path = "C:\Users\Jamie\Documents\Visual Studio 2012\Projects\MachineLearningWithFSharp_Solution\Tff.MachineLearningWithFSharp.Chapter01\ufo_awesome.txt"
    let fileStream = new FileStream(path,FileMode.Open,FileAccess.Read)
    let streamReader = new StreamReader(fileStream)
    let contents = streamReader.ReadToEnd()
    let usStates = [|"AL";"AK";"AZ";"AR";"CA";"CO";"CT";"DE";"DC";"FL";"GA";"HI";"ID";"IL";"IN";"IA";
                     "KS";"KY";"LA";"ME";"MD";"MA";"MI";"MN";"MS";"MO";"MT";"NE";"NV";"NH";"NJ";"NM";
                     "NY";"NC";"ND";"OH";"OK";"OR";"PA";"RI";"SC";"SD";"TN";"TX";"UT";"VT";"VA";"WA";
                      "WV";"WI";"WY"|]
    let cleanContents =
        contents.Split([|'\n'|])
        |> Seq.map(fun line -> line.Split([|'\t'|]))
        |> Seq.filter(fun values -> values |> Seq.length = 6)
        |> Seq.filter(fun values -> values.[0].Length = 8)
        |> Seq.filter(fun values -> values.[1].Length = 8)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(0,4)) > 1900)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(0,4)) > 1900)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(0,4)) < 2100)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(0,4)) < 2100)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(4,2)) > 0)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(4,2)) > 0)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(4,2)) <= 12)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(4,2)) <= 12)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(6,2)) > 0)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(6,2)) > 0)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[0].Substring(6,2)) <= 31)
        |> Seq.filter(fun values -> System.Int32.Parse(values.[1].Substring(6,2)) <= 31)
        |> Seq.filter(fun values -> values.[2].Split(',').[1].Trim().Length = 2)
        |> Seq.filter(fun values -> Seq.exists(fun elem -> elem = values.[2].Split(',').[1].Trim().ToUpperInvariant()) usStates)
        |> Seq.map(fun values ->
            System.DateTime.ParseExact(values.[0],"yyyymmdd",System.Globalization.CultureInfo.InvariantCulture),
            System.DateTime.ParseExact(values.[1],"yyyymmdd",System.Globalization.CultureInfo.InvariantCulture),
            values.[2].Split(',').[0].Trim(),
            values.[2].Split(',').[1].Trim().ToUpperInvariant(),
            values.[3],
            values.[4],
            values.[5])
    cleanContents

I now want to finish up the chapter where the analysis happens. R uses some built-in plotting libraries (ggplot). Following Luca’s example of this

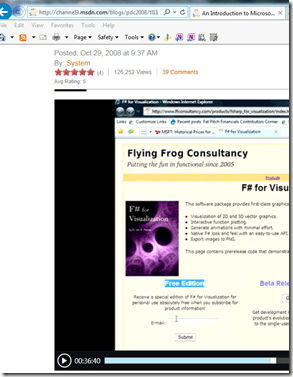

I went to the flying frogs libraries and, alas, there is no longer a free edition.

So I am bit stuck. I’ll continue to work on it for next week’s blog…

Filed under F#, Machine Learning

Why I am dropping my Make subscription

May 21, 2013 Leave a comment

I have been a Make magazine subscriber for over 3 years. I really enjoyed reading it with my kids and some of projects inspired us to try things at home (Drill Cart, Lawn Bott, etc…). About 2.5 years ago, my son wanted to build an auto-sensing mailbox for his science fair. It was about a 5 to 1 ratio of my time (prepping the work area, making sure all of the materials were available and cut to the right length, etc…) to his time (assembling the parts, copying the computer code), but it was well worth it – he might have learned some things and, most importantly, the project reinforced his belief that making things is really cool and fun.

After the science fair, I suggested that he submit this project to Make. He and I sent some time and wrote this into their on-line form:

Here’s an idea for a story for MAKE:
———————————————
Project title
———————————————
We made a mailbox that uses light signals to let you know when the mail arrives.
———————————————
Description
———————————————
We used the Phidget 0/0/4 interface kit and the Phidget 8/8/8 interface kit. We wired a regular house lamp to the 0/0/4 and 2 force detectors to the 8/8/8. We glued the force detectors to the bottom of a mailbox. <p>
We then hooked both interface kits to the computer and wrote the code to handle the input event from the force detector and to turn on the 0/0/4 circut, which turns the lamp on.<p>
Once the external data is captured, you could do other things with the mail event – Sloan wants to hook up a camera in the mailbox and take a picture of the mailman as he put the mail in. I think a simple tweet might be an easier next step.<p>
The project is for a beginner – takes about 4-6 hours. There is appx 20 lines of computer code to write.<p>
Up next is to use Netduino and not use the PC….
———————————————
Submitted by
———————————————
Jamie & Sloan Dixon
———————————————

To our surprise, the Editor And Chief wrote back almost immediately:

I would like to see a video of this in action!

Best regards,

Mark XXXXXXX

Editor-in-chief of MAKE

We put together a quick video of what he did here and sent it in. Within 2 days, I got this back from the editor and chief:

This is great! I’d like to assign it. I can pay $250 for the article.

I can send you an assignment letter with fee and deadline info. First, could you please email me the following information:

— A two-sentence bio describing who you are (Note – If you want your email address to run in the magazine, incorporate it into your bio):

— Your name as you wish it to be printed

— Your legal name (who we make the check out to)

— Your address

— Your phone numbers

— Your preferred email address (and if you’d like it to run in the magazine)

Here is a link to a zip file with three important documents:

As you can image we were pretty excited. We filled out the forms and sent them in. I then wrote this in:

Is there someone I can work with to make sure the article is up to your standards? We are trying to follow your guidelines. We have never done anything like this before (can you tell we are excited?) and want to make sure we do thing right.

Thanks!

And we got the following response:

Paul XXXXX will be your editor. He’ll make sure the article looks and reads great in the magazine. It may be a while before he gets in touch, as this is slated for Vol 32 (October) and we are working on Vol 30 right now.

Thanks!
— Mark

So then we spent a weekend writing an article for Make and sent it in. About a month later (March 2012), I sent in a reminder asking for the status. I got this from the editor in chief:

Got your email. Sorry for late reply. I’m cc’ing Paul so he can update you on the status of your project. We are still planning on running it.

Best

Mark

I then sent in this video of my daughter to Mark and got the following response:

This looks cool, too! I’ll ask Paul to give you an assigment.

— Mark

After more waiting (May 2012), I sent in a reminder asking for status from my editor (Paul) and I got this:

This email account is no longer being monitored: contact Gareth XXXXX at XXXXXX@oreilly.com

So I emailed the Editor and Chief

> I read the last Make – sorry we couldn’t make into the home automation

> edition. Hopefully some people enjoy the Phidget twist on the mailbox

> and the home security system. Is there anything else you need for the

> mailbox article? My daughter is almost done with school and she can

> write up the laser system – if you are still interested.

and I got this:

Yes we are running the article. I’m at a conference but when I get access to my schedule I’ll let you know which issue of Make it’s slated for.

Best,

— Mark

So then a month later (June 2012), we got this

Hi James and Sloan,

We’re preparing your article for publication and we’re wondering, did you ever re-do the Auto Mailbox using Netduinos? It’s not practical to leave a PC out on the street, but I think if we do a Netduino version our readers will like it and build it!

Let me know ASAP please, we need to select articles for the next issue right away.

Best regards,

Keith

So then we answered the question, changed the Phidgets relay to a Netdunino and re-wrote the article. It was a fun weekend, but it took well, the entire weekend. We got this back:

Great work, guys! Simple, useful, novel sensors, relay … I like it a lot, it’s a nice twist on the other smart mailboxes some makers have made.

I have a few questions, can you help me resolve these ASAP?

1) Will Sloan be in 5th grade this fall? Our newsstand date for this issue is in October.

So we waited until October 2012 and when it was not in the issue, I emailed Make and I got this back:

I have to rework it as a "getting started with Netduino" article. It’s slated for Volume 33 now (on sale January 22 2013).

So more waiting until February 2013 when I got another email from Make with our article marked up

Here’s what we’re working with at the moment, I’m going to try to slip it into the mag ASAP. Can you look it over and make sure it’s OK, and answer any questions marked in red?

That is the last I heard and I am not really interested in pestering them any more about the article. My son hasn’t asked about the article since February. I assume that professional writers deal with this all of the time, but I figured Make might be different because they are not dealing with professional writers – we are professional other things that want to share our passion. Combine their treatment of me and my son with the fact that that the most of the projects are now waaay harder than they were two years ago (so we can’t even do them), I am dropping my subscription. I think Popular Mechanics might have a DYI section now? If so, I will start subscribing to them…

Filed under Magazine, Netduino

Windows Store Apps and Bing Maps

May 14, 2013 Leave a comment

I started creating a RoadAlert client application to be used on RT tablets. One of the first stumbling blocks was using Bing maps. I downloaded the SDK easily. However, when I went to add the maps to my project, I got this:

What I had to do was change the project deployment FROM Any CPU to ARM so that the references would resolve:

I was then able to get the reference:

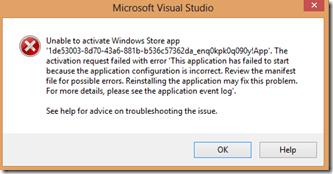

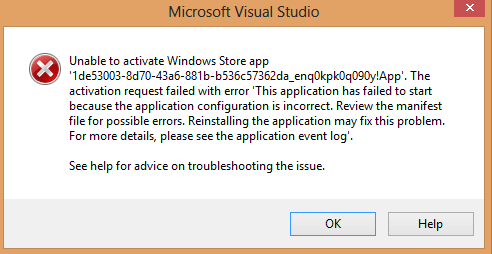

The problem is then when I ran the app on my developer workstation:

What I needed to do was the change the project type to x64 so that it would run locally. Then, when I created the package, I only targeted ARM and then it ran great on my tablet.

Filed under Bing Maps, Windows RT

Carolina Code Camp Material

May 11, 2013 Leave a comment

I had a great time presenting and attending Carolina Code Camp. Hats off the organizers for making such a large event run without a hitch. I especially want to thank Dan Thyer and Mike Linnen for the BuilderFaire. What a great time! The best part of the camp was meeting such smart and innovative people.

My own presentation materials can be found here: https://github.com/jamessdixon/2013CarolinaCodeCamp

Filed under Coding Best Practices, Microframework, Netduino

Jamie Dixon's Home

F# Books

Machine Learning for Hackers: Using F#

Why I am dropping my Make subscription

Windows Store Apps and Bing Maps

Carolina Code Camp Material

Categories

Recent Posts

Archives

Blogroll

Meta
