Using Git With Visual Studio

November 25, 2014 1 Comment

I am starting to use Git with Visual Studio 2013 on my home projects.  I have been using Git lightly for pushing code samples into GitHub, but never on projects with other people.  This is a pretty good set of articles about setting up Git with Visual Studio and well worth the read before doing it (like who reads instructions).

I created a project on Visual Studio Online and selected Git as the source control.  I then cloned the empty project locally.  Next, I created a brand-new Web Api 2 solution in Visual Studio and pushed the files over to that repository.  I then pushed those changes up to VSO.  Finally, I went over to another machine and cloned the repository and pulled down the files.

This was all well and good until I made a change on one machine and I wanted to pull down the changes into the solution that I had open on the other machine.  I was getting an “uncommitted changed being overwritten by merge” exception.  The frustrating thing was that there was nothing in the Visual Studio 2013 tooling/add-ins that allowed me to discard my local changes.  I wrote this post to stack overflow and it turns out I had a problem because I made the mistake of adding file to the repository that I didn’t want to.  I needed to do this –> add the .suo file to gitIgnore BEFORE committing the 1st change.  The problem was that adding it to the gitIgnore after the commit means the file was still being tracked and there is nothing in the out of the box VS2013 tools that can help you resolve the problem.

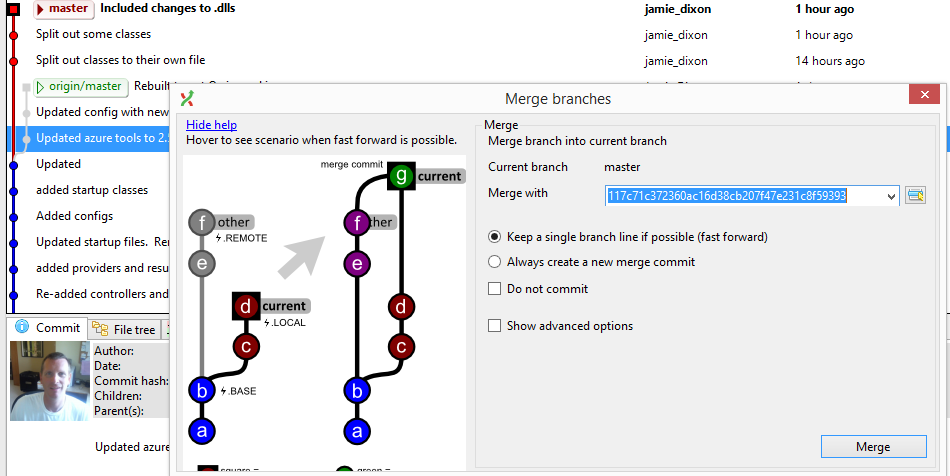

The best advice from SO was to use git extensions because when I installed it, I could do all of the things I wanted to do without learning the git commands.  Indeed, I installed it and holy cow, this is awesome:


Filed under Git, VS

Implementing (Parts Of) ASP.NET Identity Using F#

November 18, 2014 1 Comment

I started working though this and this article for implementing security in a new Web Api 2 site I am spinning up.  Everything is working out OK – not great but better than prior ASP.NET implementations I have done.  I do think the ASP.NET team has made security better and I am really excited about token based security.  My biggest gripe is that there is still too much magic going on and it is still hard to introduce non-out of the box implementations.  For example, the sample code that you can add via Nuget has a placeholder for en email provider.  The article has the code for a specific implementation of a company called SendGrid (the sample is here and the email is here).
The CSharp implementation looks like this (I did add some constructor injection b/c I am opposed to touching the Configuration (or any part of the file system for that matter) outside of Main on sanity grounds):
 1     public class SendGridEmailProvider: IIdentityMessageService
 2     {
 3         String _mailAccount = String.Empty;
 4         String _mailPassword = String.Empty;
 5         String _fromAddress = String.Empty;
 6
 7         public SendGridEmailProvider(String mailAccount, String mailPassword, String fromAddress)
 8         {
 9             _mailAccount = mailAccount;
10             _mailPassword = mailPassword;
11             _fromAddress = fromAddress
12         }
13
14         public System.Threading.Tasks.Task SendAsync(IdentityMessage message)
15         {
16             var sendGridMessage = new SendGridMessage();
17             sendGridMessage.From = new MailAddress(_fromAddress);
18             List<String> recipients = new List<string>();
19             recipients.Add(message.Destination);
20             sendGridMessage.AddTo(recipients);
21             sendGridMessage.Subject = message.Subject;
22             sendGridMessage.Html = message.Body;
23             sendGridMessage.Text = message.Body;
24
25             var credentials = new NetworkCredential(_mailAccount, _mailPassword);
26             var transportWeb = new Web(credentials);
27             if (transportWeb != null)
28                 return transportWeb.DeliverAsync(sendGridMessage);
29             else
30                 return Task.FromResult(0);
31         }
32     }

I then decided to implement a SMS Text Provider along the same lines.  The 1st company I came to was CDyne but when I went to their sample code, they are still using a SOAP-based service and the last thing I wanted to do was to clutter up my project with all of the WSDL and files that you needs when consuming a service like that.
I then thought, this is stupid.  I might was well use FSharp type providers to do the implementation.  Less Code, less files, less clutter, more goodness.  I first swapped out the Email to a FSharp implementation:
 1 type SendGridEmailService(account:string, password:string, fromAddress:string) =
 2     interface IIdentityMessageService with
 3         member this.SendAsync(identityMessage) =
 4             let sendGridMessage = new SendGridMessage()
 5             sendGridMessage.From = new MailAddress(fromAddress) |> ignore
 6             let recipients = new List<string>()
 7             recipients.Add(identityMessage.Destination)
 8             sendGridMessage.AddTo(recipients)
 9             sendGridMessage.Subject <- identityMessage.Subject
10             sendGridMessage.Html <- identityMessage.Body
11             sendGridMessage.Text <- identityMessage.Body
12
13             let credentials = new NetworkCredential(account, password)
14             let transportWeb = new Web(credentials)
15             match transportWeb with
16                 | null -> Task.FromResult(0):> Task
17                 | _ -> transportWeb.DeliverAsync(sendGridMessage)

I then did a SMS text provider using type providers.
 1 type cDyneService = Microsoft.FSharp.Data.TypeProviders.WsdlService<"http://sms2.cdyne.com/sms.svc?wsdl">
 2
 3 type CDyneSMSService(licenseKey:Guid) =
 4     interface IIdentityMessageService with
 5         member this.SendAsync(identityMessage) =
 6             let cDyneClient = cDyneService.Getsms2SOAPbasicHttpBinding
 7             let client = cDyneService.Getsms2SOAPbasicHttpBinding()
 8             match client with
 9                 | null -> Task.FromResult(0):> Task
10                 | _ -> client.SimpleSMSsendAsync(identityMessage.Destination,identityMessage.Body,licenseKey):> Task

Compared to a CSharp implementation, this is joyous.  Less noise, more signal.  And thanks to Lee on Stack Overflow for helping with the upcast of Task…

Filed under Uncategorized

Adopting F# in a C# Shop

November 11, 2014 4 Comments

I have been speaking to different groups in both large and small companies about adopting FSharp as part of their .NET stack and the resistance ranges from the understandable to the head-scratching.  I posted a similar question to the Google group here and got some pretty interesting responses.  The funniest was this video.  Scott Wlaschin offers several convincing reasons to use FSharp here  as well as  several ways to try and work around the walls thrown up in a “C Sharp shop” here.

I have recently implemented a project using FSharp in a large insurance company that is a  “CSharp shop” using the following technique and hopefully someone else can get some use out of it.  My first premise is that FSharp is not the end, it is the means.  Therefore, you don’t want to walk into any meeting and say something like “hey, I heard of this great new language, we should try it out.”  That kind of statement will be dead in the water with the layers of project managers, architectural review committees, etc….  Rather, you need to walk into the meeting and way “As you know, our company is supposed to be ‘innovative’ and I have been experimenting outside of work with different ways to reduce the number of bugs in our code and deliver software faster.”

(Jamie note, since I wrote this, this study came out pointing out that functional programming does produce better code quality.  However, its benefits are not as important as having a high performing team with the appropriate process (team size, project size, and commit size)).  One more thing to mention to the PM.

The next step is to realize that one of the most overlooked benefits of FSharp is that since it is a .NET language, you can slide a FSharp project into a Visual Studio Solution with just a couple of button clicks and the existing CSharp code will just work with it.  Use this to your advantage by creating an interface to an existing CSharp class that has some conditional logic.  For example,CSharp implementation of a class that creats a customer for an order

 1     public class CustomerCreator
 2     {
 3         Boolean alreadyHasAnAccount = false;
 4
 5         public Customer CreateCustomerForAnOrder(Order order, String firstName, String lastName)
 6         {
 7             //Actual implementation is not important
 8             return new Customer();
 9         }
10     }

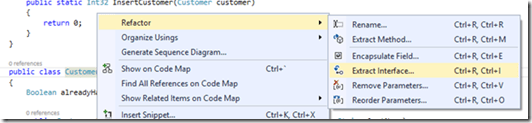

The actual implementation is not important because as a FSharp dev, you don’t really want to look at the CSharp code.  All you really want  to do is extract the interface:


1     interface ICustomerCreator
2     {
3         Customer CreateCustomerForAnOrder(Order order, string firstName, string lastName);
4     }

With the interface in place, you can now create a FSharp project in the solution and begin your implementation of it:

1 namespace ChickenSoftware.CustomerManagementExt
2
3 open ChickenSoftware.CustomerManagement
4
5 type BetterCustomerCreator() =
6     interface ICustomerCreator with
7         member this.CreateCustomerForAnOrder(order, firstName, lastName) =
8             new Customer()

(Note I wouldn’t call it ‘BetterCustomerCreator’ for real, even if it is better).

You then can enter your next meeting saying, something like “I created functional equivalence with the enhancements of fewer bug, better readability, and mutli-threading support.”  The PM will say, “that is awesome” and the developers who no longer code (typically called architects in large companies) will protest that it is in a different language.  But now you have the PM on your side and you can have a discussion about finding qualified people to work in F#.  My experience there is that the developers you want to work with will jump at the chance and the devs you don’t want on the project will balk at learning a new language/mindset.  You can also mention that the really good C# devs are already using linq an lambdas so they are already transitioning to FSharp.

The last point is that you need to back up the statement you made originally that FSharp reduces the number of bugs and delivers software faster.  If you are a .NET dev,  I would recommend listening to Bob Martin when he says that you need to spend 20 hours a week outside of your primary job (as he mentions here) and learning a functional language (as he mentions here) learning FSharp.  That effort, coupled with the FSharp community (the best community you will find) will certainly allow you to walk the walk.  There will be detractors at every turn who will point to any slowdown to a FSharp codebase as proof that CSharp would have been perfectly fine.  The only thing I can say there is “Don’t let the turkeys get you down.” and manage expectations that FSharp is not a silver bullet and that there are places where CSharp is more appropriate.  Be the voice of innovation and reason, don’t be the functional dogmatic in the room.  So far it was worked for me, and I hope it works for you.

Filed under F#

Halloween Project (Garage Of Mystery)

November 4, 2014 2 Comments

For this years Halloween, the kids and I decided to do something out of the opening scene of Indiana Jones, without the big rock.  We wanted to give kids a choice when they came to the house –> either get a small “fun” size candy bar or enter the garage of mystery for the chance of a full sized candy bar.  (Incidentally, whoever thought it would be a good idea to name the smallest candy size on earth “fun” obviously was never a kid.  When I was growing up, we called it four size, being that if took four of them to make a normal candy bar)

So if the kid wants to go into the garage of mystery, they have to get to the alter of snickers without the motion detector or the laser beam trip wires catching them.  The full-size Snickers would disappear if the kid was picked up by the Kinect motion detector or if they tripped too many beams.  In the diagram below, the red dots are the lasers crossing in front of the alter


The first thing we did was construct the alter.


Once the frame was set, we added a servo with a trap door to the top.  We control the servo via a Phidget Servo Controller with some basic code from the Phidget SDK (if the SDK, you know, had F# in it)

 1     member this.servoController_Attached(args:Events.AttachEventArgs) =
 2         let _servoController = args.Device :?> AdvancedServo
 3         _servoController.servos.[0].Engaged <- true
 4         _servoController.servos.[0].Position <- 110.
 5         _isServoControllerReady  <- true
 6
 7     member this.initializeController() =
 8         _servoController.Attach.Add(this.servoController_Attached)
 9         _servoController.``open``()
10
11     member this.moveController(position:float) =
12         if _isServoControllerReady then
13             _servoController.servos.[0].Position <- position
14

And you can see it in action here:



With the alter ready, we turned our attention to the laser trip wires.  We purchased a whole bunch of dollar store pen lasers and got some Phidget light sensors.  We then created a frame for both sides of the garage –> one to mount the laser and 1 to mount the light sensor


And then we added some basic code from the Phidget SDK (if the SDK, you know, had F# in it)

 1     member this.interfaceKit_Attached(args: Events.AttachEventArgs) =
 2         let _interfaceKit = args.Device :?> InterfaceKit
 3         _interfaceKit.sensors
 4                         |> Seq.cast
 5                         |> Seq.map(fun s -> s :> InterfaceKitAnalogSensor)
 6                         |> Seq.map(fun s -> s.Sensitivity <- 20)
 7                         |>ignore
 8         _isInterfaceKitReady <- true
 9
10     member this.interfaceKit_SensorChange(e: SensorChangeEventArgs ) =
11         let eventArgs = new LightSensorChangeEventArgs(e.Index,e.Value)
12         lightSensorChange.Trigger(eventArgs)
13
14     member this.initializeInterfaceKit() =
15         _interfaceKit.Attach.Add(this.interfaceKit_Attached)
16         _interfaceKit.SensorChange.Add(this.interfaceKit_SensorChange)
17         _interfaceKit.``open``()
18         _interfaceKit.waitForAttachment()
19

Note that we are trapping the event from the light sensor and then raising it up in our own event.

With the light sensor in place, we turned our attention to the Kinect motion sensor.  I first considered Rob Miles’s ides to compare the different color frames to see if there was movement but because I am using F# and F# does not support pointers like C#, the performance was too choppy.  You can see the Stack Overflow thread here.  So I could have either jumped to over to C# or figure out a different way using F#.  I went with option B by using the skeleton frame, which has a Z index.  By comparing the Z index over time, I can see how fast a person is moving towards to alter.  The Kinect code was pretty much from the SDK (if the SDK, you know, had F# in it)

 1     member this.kinectSensor_ColorFrameReady(args: ColorImageFrameReadyEventArgs) =
 2         use colorFrame = args.OpenColorImageFrame()
 3         if not (colorFrame = null) then
 4             let colorData =  Array.zeroCreate<byte> colorFrame.PixelDataLength
 5             colorFrame.CopyPixelDataTo(colorData)
 6             let width = colorFrame.Width
 7             let height = colorFrame.Height
 8             let stride = colorFrame.Width * colorFrame.BytesPerPixel
 9             let eventArgs = new ColorDataReadyEventArgs(colorData,width,height,stride)
10             colorDataReady.Trigger(eventArgs)
11             ()
12
13     member this.KinectSensor_SkeletonFrameReady(args: SkeletonFrameReadyEventArgs) =
14         use skeletonFrame = args.OpenSkeletonFrame()
15         if not (skeletonFrame = null) then
16             let skeletons = Array.zeroCreate<Skeleton> skeletonFrame.SkeletonArrayLength
17             skeletonFrame.CopySkeletonDataTo(skeletons)
18             let skeletons1 = skeletons |> Array.filter (fun s -> s.TrackingState = SkeletonTrackingState.Tracked)
19             if skeletons1.Length > 0 then
20               skeletonChanged.Trigger(skeletons1.[0])
21             ()
22         ()
23
24     member this.initializeKinect() =
25         _kinectSensor.ColorStream.Enable()
26         _kinectSensor.ColorFrameReady.Subscribe(this.kinectSensor_ColorFrameReady) |> ignore
27         _kinectSensor.SkeletonStream.Enable();
28         _kinectSensor.SkeletonFrameReady.Subscribe(this.KinectSensor_SkeletonFrameReady) |> ignore
29         _kinectSensor.Start()
30

In the UI, I then checked for the skeleton movement and if the person moved too fast, they would trigger the snickers trap door to open

 1         void garage_SkeletonChanged(object sender, Skeleton skeleton)
 2         {
 3             if(_skeletonPoint.Z > 0)
 4             {
 5                 float zDelta = _skeletonPoint.Z - skeleton.Position.Z;
 6                 if (zDelta >= _zDeltaThreshold)
 7                 {
 8                     _numberOfSkeletonHits += 1;
 9                     skeletonChangedProgressBar.Dispatcher.Invoke(new Action(() => skeletonChangedProgressBar.Value = _numberOfSkeletonHits));
10
11                 }
12                 if(_numberOfSkeletonHits >= _numberOfHitsForAlarm)
13                 {
14                     _garage.moveController(_openPosition);
15                 }
16
17                 skeletonCanvas.Children.Clear();
18                 drawSkelton(skeleton);
19             }
20             _skeletonPoint = skeleton.Position;
21         }
22

With the result like this:

With the hard parts done, it was time to create a UI.  I went with C# here because I am using WPF and the support for WPF and the Kinect is best in C#.  I created a WPF application and built a UI

 1 <Window x:Class="ChickenSoftware.Halloween.UI.MainWindow"
 2         xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
 3         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
 4         Title="MainWindow" Height="600" Width="650" >
 5     <Grid Height="600" Width="650" VerticalAlignment="Top" HorizontalAlignment="Left" >
 6         <Image Name ="kinectVideo"  Height="480" Width="640" Margin="10,0,0,120" />
 7         <Canvas Name="skeletonCanvas" Height="480" Width="640" Margin="10,0,0,120"  />
 8         <Rectangle x:Name="sensor0Rectange" Fill="Lime" HorizontalAlignment="Left" Height="40" Margin="10,480,0,0" Stroke="Black" VerticalAlignment="Top" Width="82"/>
 9         <Rectangle x:Name="sensor1Rectange" Fill="Lime" HorizontalAlignment="Left" Height="40" Margin="189,480,0,0" Stroke="Black" VerticalAlignment="Top" Width="83"/>
10         <Rectangle x:Name="sensor2Rectange" Fill="Lime" HorizontalAlignment="Left" Height="40" Margin="367,480,0,0" Stroke="Black" VerticalAlignment="Top" Width="82"/>
11         <Rectangle x:Name="sensor3Rectange" Fill="Lime" HorizontalAlignment="Left" Height="40" Margin="537,480,0,0" Stroke="Black" VerticalAlignment="Top" Width="83"/>
12         <ProgressBar x:Name="skeletonChangedProgressBar" HorizontalAlignment="Left" Height="40" Margin="10,528,0,0" VerticalAlignment="Top" Width="392" Foreground="#FFB00606"/>
13         <Button x:Name="resetButton" Content="Reset" HorizontalAlignment="Left" Height="37" Margin="537,528,0,0"
14                 VerticalAlignment="Top" Width="83" Click="resetButton_Click"/>
15         <Button x:Name="EjectButton" Content="Eject!" HorizontalAlignment="Left" Height="37" Margin="429,528,0,0"
16             VerticalAlignment="Top" Width="83" Click="EjectButton_Click"/>
17     </Grid>
18 </Window>

I then added some code to handle all of the events that the Phidgets and Kinect are sending to the UI and do something useful with it.    For example, the light sensor change fills in the appropriate box on the screen (note that Phidgets use a different thread so you need to use Dispatcher.Invoke)

 1         void garage_LightSensorChange(object sender, LightSensorChangeEventArgs args)
 2         {
 3             switch (args.SensorIndex)
 4             {
 5                 case 0:
 6                     if (args.SensorIndex == 0 && args.LightAmount < _lightSensorThreshold)
 7                     {
 8                         _sensor0Tripped = true;
 9                         sensor0Rectange.Dispatcher.Invoke(new Action(()=>sensor0Rectange.Fill = new SolidColorBrush(Colors.Red)));
10                     }
11                     break;
12                 case 1:
13
14                     if (args.SensorIndex == 1 && args.LightAmount < _lightSensorThreshold)
15                     {
16                         _sensor1Tripped = true;
17                         sensor1Rectange.Dispatcher.Invoke(new Action(() => sensor1Rectange.Fill = new SolidColorBrush(Colors.Red)));
18                     }
19                     break;
20                 case 2:
21                     if (args.SensorIndex == 2 && args.LightAmount < _lightSensorThreshold)
22                     {
23                         _sensor2Tripped = true;
24                         sensor2Rectange.Dispatcher.Invoke(new Action(() => sensor2Rectange.Fill = new SolidColorBrush(Colors.Red)));
25                     }
26                     break;
27                 case 3:
28                     if (args.SensorIndex == 3 && args.LightAmount < _lightSensorThreshold)
29                     {
30                         _sensor3Tripped = true;
31                         sensor3Rectange.Dispatcher.Invoke(new Action(() => sensor3Rectange.Fill = new SolidColorBrush(Colors.Red)));
32                     }
33                     break;
34             }
35             CheckForIntruder();
36         }
37

With this associated method

 1         private void CheckForIntruder()
 2         {
 3             Int32 numberOfSensorsTripped = 0;
 4
 5             if (_sensor0Tripped == true)
 6                 numberOfSensorsTripped += 1;
 7             if (_sensor1Tripped == true)
 8                 numberOfSensorsTripped += 1;
 9             if (_sensor2Tripped == true)
10                 numberOfSensorsTripped += 1;
11             if (_sensor3Tripped == true)
12                 numberOfSensorsTripped += 1;
13             if (numberOfSensorsTripped >= _numberOfSensorsForAlarm )
14                 _garage.moveController(0);
15
16         }

This code would be so much better in F# using pattern matching but b/c of the UI code, I kept it in C#.  I might refactor the non-visual components later.  The one thing that did surprise me is that how the Kinect V1 SDK makes it very hard to separate the UI components from the domain components.  Phidgets, on the other hand, had a very clear separation of concerns

So we then added some sides to the alter of snickers


And we were good to go.  The final result looks like this (the smoke machine was an added touch):

All of the code is on github here.  If you create your own garage of mystery, please drop me a line –> I would love to see what other makers come up with.

Filed under F#, Kinect, Phidgets
