Smart Nerd Dinner

October 7, 2014 2 Comments

I think there is general agreement that the age of the ASP.NET wire-framing post-back web dev is over. If you are going to writing web applications in 2015 in the .NET stack, you have to be able to use java script and associated javascript frameworks like Angular. Similarly, the full-stack developer needs to have a much deeper understanding of the data that is passing in and and out of their application. With the rise of analytics in an application, the developer needs different tools and approaches to their application. Just as you need to know javascript if you are going to be in the browser, you need to know F# if you are going to be building industrial-grade domain and data layers.

I decided to refactor an existing ASP.NET postback website to see how hard it would be to introduce F# to the project and apply some basic statistics to make the site smarter. It was pretty easy and the payoffs were quite large.

If you are not familiar, nerd Dinner is the cannonal example of a MVC application that was created to show Microsoft web devs how to create a website using the .NET stack. The original project was put into a book with the Mount Rushmore of MSFT uber-devs

The project was so successful that it actually was launched into a real website

and you can find the code on Codeplex here

When you download the source code from the repository, you will notice a couple of things:

1) It is not a very big project – with only 1100 lines of code

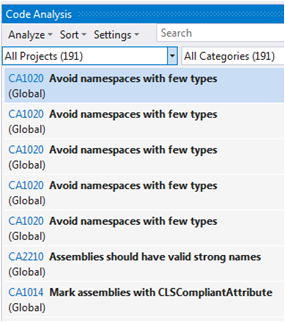

2) There are 191 FxCop violations

3) It does compile coming out of source, but some of the unit tests fail

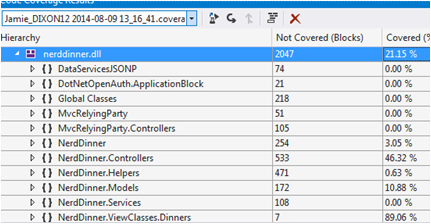

4) There is pretty low code coverage (21%)

Focusing on the code coverage issue, it makes sense that there is not much code coverage because there is not much code that can be covered. There is maybe 15 lines of “business logic” if the term business logic is expanded to include input validation. This is an example

Also, there is maybe ten lines of code that do some basic filtering

So step one in the quest to refactor nerd dinner to be a bit smarter was to rename the projects. Since MVC is a UI framework, it made sense to call it that. I then changed the namespaces to reflect the new structure

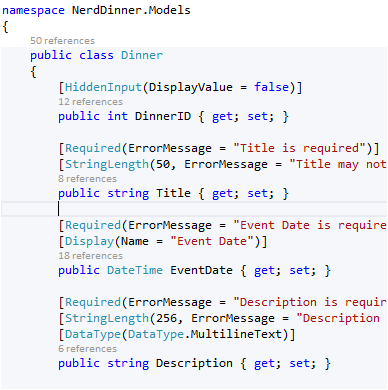

The next step was to take the domain classes out of the UI and put them into the application. First, I created another project

I then took all of the interfaces that was in the UI and placed them into the application

 1 namespace NerdDinner.Models
 2
 3 open System
 4 open System.Linq
 5 open System.Linq.Expressions
 6
 7 type IRepository<'T> =
 8   abstract All : IQueryable<'T>
 9   abstract AllIncluding
10     : [<ParamArray>] includeProperties:Expression<Func<'T, obj>>[] -> IQueryable<'T>
11     abstract member Find: int -> 'T
12     abstract member InsertOrUpdate: 'T -> unit
13     abstract member Delete: int -> unit
14     abstract member SubmitChanges: unit -> unit
15
16 type IDinnerRepository =
17   inherit IRepository<Dinner>
18   abstract member FindByLocation: float*float -> IQueryable<Dinner>
19   abstract FindUpcomingDinners : unit -> IQueryable<Dinner>
20   abstract FindDinnersByText : string -> IQueryable<Dinner>
21   abstract member DeleteRsvp: 'T -> unit

I then tooks all of the data structures/models and placed them in the application.

  1 namespace NerdDinner.Models
  2
  3 open System
  4 open System.Web.Mvc
  5 open System.Collections.Generic
  6 open System.ComponentModel.DataAnnotations
  7 open System.ComponentModel.DataAnnotations.Schema
  8
  9 type public LocationDetail (latitude,longitude,title,address) =
 10     let mutable latitude = latitude
 11     let mutable longitude = longitude
 12     let mutable title = title
 13     let mutable address = address
 14
 15     member public this.Latitude
 16         with get() = latitude
 17         and set(value) = latitude <- value
 18
 19     member public this.Longitude
 20         with get() = longitude
 21         and set(value) = longitude <- value
 22
 23     member public this.Title
 24         with get() = title
 25         and set(value) = title <- value
 26
 27     member public this.Address
 28         with get() = address
 29         and set(value) = address <- value
 30
 31 type public RSVP () =
 32     let mutable rsvpID = 0
 33     let mutable dinnerID = 0
 34     let mutable attendeeName = ""
 35     let mutable attendeeNameId = ""
 36     let mutable dinner = null
 37
 38     member public self.RsvpID
 39         with get() = rsvpID
 40         and set(value) = rsvpID <- value
 41
 42     member public self.DinnerID
 43         with get() = dinnerID
 44         and set(value) = dinnerID <- value
 45
 46     member public self.AttendeeName
 47         with get() = attendeeName
 48         and set(value) = attendeeName <- value
 49
 50     member public self.AttendeeNameId
 51         with get() = attendeeNameId
 52         and set(value) = attendeeNameId <- value
 53
 54     member public self.Dinner
 55         with get() = dinner
 56         and set(value) = dinner <- value
 57
 58
 59 and public Dinner () =
 60     let mutable dinnerID = 0
 61     let mutable title = ""
 62     let mutable eventDate = DateTime.MinValue
 63     let mutable description = ""
 64     let mutable hostedBy = ""
 65     let mutable contactPhone = ""
 66     let mutable address = ""
 67     let mutable country = ""
 68     let mutable latitude = 0.
 69     let mutable longitude = 0.
 70     let mutable hostedById = ""
 71     let mutable rsvps = List<RSVP>() :> ICollection<RSVP>
 72
 73     [<HiddenInput(DisplayValue=false)>]
 74     member public self.DinnerID
 75         with get() = dinnerID
 76         and set(value) = dinnerID <- value
 77
 78     [<Required(ErrorMessage="Title Is Required")>]
 79     [<StringLength(50,ErrorMessage="Title may not be longer than 50 characters")>]
 80     member public self.Title
 81         with get() = title
 82         and set(value) = title <- value
 83
 84     [<Required(ErrorMessage="EventDate Is Required")>]
 85     [<Display(Name="Event Date")>]
 86     member public self.EventDate
 87         with get() = eventDate
 88         and set(value) = eventDate <- value
 89
 90     [<Required(ErrorMessage="Description Is Required")>]
 91     [<StringLength(256,ErrorMessage="Description may not be longer than 256 characters")>]
 92     [<DataType(DataType.MultilineText)>]
 93     member public self.Description
 94         with get() = description
 95         and set(value) = description <- value
 96
 97     [<StringLength(256,ErrorMessage="Hosted By may not be longer than 256 characters")>]
 98     [<Display(Name="Hosted By")>]
 99     member public self.HostedBy
100         with get() = hostedBy
101         and set(value) = hostedBy <- value
102
103     [<Required(ErrorMessage="Contact Phone Is Required")>]
104     [<StringLength(20,ErrorMessage="Contact Phone may not be longer than 20 characters")>]
105     [<Display(Name="Contact Phone")>]
106     member public self.ContactPhone
107         with get() = contactPhone
108         and set(value) = contactPhone <- value
109
110     [<Required(ErrorMessage="Address Is Required")>]
111     [<StringLength(20,ErrorMessage="Address may not be longer than 50 characters")>]
112     [<Display(Name="Address")>]
113     member public self.Address
114         with get() = address
115         and set(value) = address <- value
116
117     [<UIHint("CountryDropDown")>]
118     member public this.Country
119         with get() = country
120         and set(value) = country <- value
121
122     [<HiddenInput(DisplayValue=false)>]
123     member public self.Latitude
124         with get() = latitude
125         and set(value) = latitude <- value
126
127     [<HiddenInput(DisplayValue=false)>]
128     member public v.Longitude
129         with get() = longitude
130         and set(value) = longitude <- value
131
132     [<HiddenInput(DisplayValue=false)>]
133     member public self.HostedById
134         with get() = hostedById
135         and set(value) = hostedById <- value
136
137     member public self.RSVPs
138         with get() = rsvps
139         and set(value) = rsvps <- value
140
141     member public self.IsHostedBy (userName:string) =
142         System.String.Equals(hostedBy,userName,System.StringComparison.Ordinal)
143
144     member public self.IsUserRegistered(userName:string) =
145         rsvps |> Seq.exists(fun r -> r.AttendeeName = userName)
146
147
148     [<UIHint("Location Detail")>]
149     [<NotMapped()>]
150     member public self.Location
151         with get() = new LocationDetail(self.Latitude,self.Longitude,self.Title,self.Address)
152         and set(value:LocationDetail) =
153             let latitude = value.Latitude
154             let longitude = value.Longitude
155             let title = value.Title
156             let address = value.Address
157             ()

Unlike C# where there is a class per file, all of the related elements are placed into a the same location. Also, notice that the absence of semi-colons, curly braces, and other distracting characters, and finally you can see that because were are in the .NET framework, all of the data annotations are the same. Sure enough, pointing the MVC UI to the application and hitting run, the application just works.

With the separation complete, it was time time to make our app much smarter. The first thing that I thought of was when the person creates an account, they enter their first and last name

This seems like an excellent opportunity to add some user ~~manipulation~~ personalization to our site. Going back to this analysis of names gives to newborns in the United States, if I know your first name, I have a pretty good chance of guessing your age/gender/and state of birth. For example ‘Jose’ is probably a male born in his twenties in either Texas or California. ‘James’ is probably a male in his 40s or 50s.

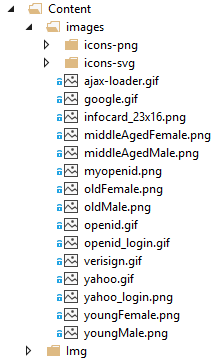

I added 6 pictures to the site for young,middleAged, and old males and females.

I then modified the logonStatus partial view like so

 1 @using NerdDinner.UI;
 2
 3
 4 @if(Request.IsAuthenticated) {
 5     <text>Welcome <b>@(((NerdIdentity)HttpContext.Current.User.Identity).FriendlyName)</b>!
 6     [ @Html.ActionLink("Log Off", "LogOff", "Account") ]</text>
 7 }
 8 else {
 9     @:[ @Html.ActionLink("Log On", "LogOn", new { controller = "Account", returnUrl = HttpContext.Current.Request.RawUrl }) ]
10 }
11
12 @if (Session["adUri"] != null)
13 {
14     <img alt="product placement" title="product placement" src="@Session["adUri"]" height="40" />
15 }

Then, I created a session variable called adUri that the picture will reference in the Logon controller

 1         public ActionResult LogOn(LogOnModel model, string returnUrl)
 2         {
 3             if (ModelState.IsValid)
 4             {
 5                 if (ValidateLogOn(model.UserName, model.Password))
 6                 {
 7                     // Make sure we have the username with the right capitalization
 8                     // since we do case sensitive checks for OpenID Claimed Identifiers later.
 9                     string userName = MembershipService.GetCanonicalUsername(model.UserName);
10
11                     FormsAuth.SignIn(userName, model.RememberMe);
12
13                     AdProvider adProvider = new AdProvider();
14                     String catagory = adProvider.GetCatagory(userName);
15                     Session["adUri"] = "/Content/images/" + catagory + ".png";
16

And finally, I added an implementation of the adProvider back in the application:

1     type AdProvider () =
2         member this.GetCatagory personName: string =
3             "middleAgedMale"

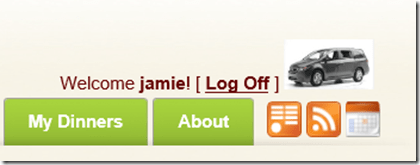

So running the app, we have a product placement for a Middle Aged Male

So the last thing to do is to turn names into those categories. I thought of a couple of different implementations: loading the entire census data set and searching it on demand, I then thought about using Azure ML and making a API request each time, I then decided into just creating a lookup table that can be searched. In any event, since I am using an interface, swapping out implementations is easy and since I am using F#, creating implementations is easy.

I went back to my script file that analyzed the baby names from the US census and created a new script. I loaded the names into memory like before

 1 #r "C:/Git/NerdChickenChicken/04_mvc3_Working/packages/FSharp.Data.2.0.14/lib/net40/FSharp.Data.dll"
 2
 3 open FSharp.Data
 4
 5 type censusDataContext = CsvProvider<"https://portalvhdspgzl51prtcpfj.blob.core.windows.net/censuschicken/AK.TXT">
 6 type stateCodeContext = CsvProvider<"https://portalvhdspgzl51prtcpfj.blob.core.windows.net/censuschicken/states.csv">
 7
 8 let stateCodes =  stateCodeContext.Load("https://portalvhdspgzl51prtcpfj.blob.core.windows.net/censuschicken/states.csv");
 9
10 let fetchStateData (stateCode:string)=
11         let uri = System.String.Format("https://portalvhdspgzl51prtcpfj.blob.core.windows.net/censuschicken/{0}.TXT",stateCode)
12         censusDataContext.Load(uri)
13
14 let usaData = stateCodes.Rows
15                 |> Seq.collect(fun r -> fetchStateData(r.Abbreviation).Rows)
16                 |> Seq.toArray
17

I then created a function that tells the probability of male

 1 let genderSearch name =
 2     let nameFilter = usaData
 3                         |> Seq.filter(fun r -> r.Mary = name)
 4                         |> Seq.groupBy(fun r -> r.F)
 5                         |> Seq.map(fun (n,a) -> n,a |> Seq.sumBy(fun (r) -> r.``14``))
 6
 7     let nameSum = nameFilter |> Seq.sumBy(fun (n,c) -> c)
 8     nameFilter
 9         |> Seq.map(fun (n,c) -> n, c, float c/float nameSum)
10         |> Seq.filter(fun (g,c,p) -> g = "M")
11         |> Seq.map(fun (g,c,p) -> p)
12         |> Seq.head
13
14 genderSearch "James"
15

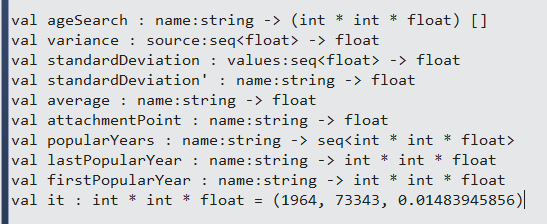

I then created a function that calculated the year the last name was popular (using 1 standard deviation away)

 1 let ageSearch name =
 2     let nameFilter = usaData
 3                         |> Seq.filter(fun r -> r.Mary = name)
 4                         |> Seq.groupBy(fun r -> r.``1910``)
 5                         |> Seq.map(fun (n,a) -> n,a |> Seq.sumBy(fun (r) -> r.``14``))
 6                         |> Seq.toArray
 7     let nameSum = nameFilter |> Seq.sumBy(fun (n,c) -> c)
 8     nameFilter
 9         |> Seq.map(fun (n,c) -> n, c, float c/float nameSum)
10         |> Seq.toArray
11
12 let variance (source:float seq) =
13     let mean = Seq.average source
14     let deltas = Seq.map(fun x -> pown(x-mean) 2) source
15     Seq.average deltas
16
17 let standardDeviation(values:float seq) =
18     sqrt(variance(values))
19
20 let standardDeviation' name = ageSearch name
21                             |> Seq.map(fun (y,c,p) -> float c)
22                             |> standardDeviation
23
24 let average name = ageSearch name
25                 |> Seq.map(fun (y,c,p) -> float c)
26                 |> Seq.average
27
28 let attachmentPoint name = (average name) + (standardDeviation' name)
29
30 let popularYears name =
31     let allYears = ageSearch name
32     let attachmentPoint' = attachmentPoint name
33     let filteredYears = allYears
34                         |> Seq.filter(fun (y,c,p) -> float c > attachmentPoint')
35                         |> Seq.sortBy(fun (y,c,p) -> y)
36     filteredYears
37
38 let lastPopularYear name = popularYears name |> Seq.last
39 let firstPopularYear name = popularYears name |> Seq.head
40
41 lastPopularYear "James"
42

And then created a function that takes in the gender probability of being male and the last year the name was poular and assigns the name into a category:

1 let nameAssignment (malePercent, lastYearPopular) =
2     match malePercent > 0.75, malePercent < 0.75, lastYearPopular < 1945, lastYearPopular > 1980 with
3         | true, false, true, false -> "oldMale"
4         | true, false, false, false -> "middleAgedMale"
5         | true, false, false, true -> "youngMale"
6         | false, true, true, false -> "oldFemale"
7         | false, true, false, false -> "middleAgedFemale"
8         | false, true, false, true -> "youngFeMale"
9         | _,_,_,_ -> "unknown"

And then it was a matter of tying the functions together for each of the names in the master list:

 1 let nameList = usaData
 2                 |> Seq.map(fun r -> r.Mary)
 3                 |> Seq.distinct
 4
 5 nameList
 6     |> Seq.map(fun n -> n, genderSearch n)
 7     |> Seq.map(fun (n,mp) -> n,mp, lastPopularYear n)
 8     |> Seq.map(fun (n,mp,(y,c,p)) -> n, mp, y)
 9
10 let nameList' = nameList
11                 |> Seq.map(fun n -> n, genderSearch n)
12                 |> Seq.map(fun (n,mp) -> n,mp, lastPopularYear n)
13                 |> Seq.map(fun (n,mp,(y,c,p)) -> n, mp, y)
14                 |> Seq.map(fun (n,mp,y) -> n,nameAssignment(mp,y))
15

And then write the list out to a file

1 open System.IO
2 let outFile = new StreamWriter(@"c:\data\nameList.csv")
3
4 nameList' |> Seq.iter(fun (n,c) -> outFile.WriteLine(sprintf "%s,%s" n c))
5 outFile.Flush
6 outFile.Close()

Thanks to this stack overflow post for the file write (I wish the csv type provider had this ability). With the file created, I can then use the file as a lookup for my name function back in the MVC app using a csv type provider

 1     type nameMappingContext = CsvProvider<"C:/data/nameList.csv">
 2
 3     type AdProvider () =
 4         member this.GetCatagory personName: string =
 5             let nameList = nameMappingContext.Load("C:/data/nameList.csv")
 6             let foundName = nameList.Rows
 7                                 |> Seq.filter(fun r -> r.Annie = personName)
 8                                 |> Seq.map(fun r -> r.oldFemale)
 9                                 |> Seq.toArray
10             if foundName.Length > 0 then
11                 foundName.[0]
12             else
13                 "middleAgedMale"

And now I have some (basic) personalization to Nerd Dinner. (Emma is a young female name so they get a picturer of a campground)

So this a rather crude. There is no provision for nicknames, case-sensitivity, etc. But the site is along the way to becoming smarter…

The code can be found on github here.

Filed under Analytics, F#, MVC

Export .sdif file to the client’s desktop

May 31, 2011 Leave a comment

One of the user requirements of the swim team website is to send the .sdif file that I blogged about here from the webpage to the user’s browser – or download it to the users file system. Since the file is dynamic and I can’t write to the file system of the web server, I need a way to generate the file and then have a dialog box “Save To” open.

The first step was to add a UI project to the solution that matches the MVC project that the swim team currently users. I love the organization of the initial project – it was very easy and logical to drop in a new Web project:

I then opened up the home controller and added a base method and ported the code from the Console UI:

        [HttpPost]
        public ActionResult GetSdifFile()
        {
            string fileName = @"C:\Users\Public\PracticeMeetSetup.SD3";
            MeetSetupFactory factory = new MeetSetupFactory();
            Collection<string> collection = factory.CreateMeetSetUp(72);
            File.WriteAllLines(fileName, collection);
            return View();
        }

Basically, I need to rip out the disk write code and replace it with something that can go to the browser. Being a traditional ASP.Net guy, I immediately thought of something like this:

        public void Guess(string filePath)
        {
            try
            {
                using (StreamReader sr = new StreamReader(filePath))
                {
                    String line;
                    while ((line = sr.ReadLine()) != null)
                    {
                        Response.Write(line + "<br />");
                    }
                }
            }
            catch (Exception ex)
            {
                Response.Write("<p>The file could not be read:");
                Response.Write(ex.Message + "</p>");
            }
        }

I then thought “Wait, this is MVC…” so I thought of something like this:

        [HttpPost]
        public ActionResult GetSdifFile()
        {
            MeetSetupFactory factory = new MeetSetupFactory();
            Collection<string> collection = factory.CreateMeetSetUp(72);
            return View(collection);
        }

And the view displaying the contents of the collection:

    <h2>GetSdifFile</h2>
        <% foreach (string _currentString in Model){ %>
            <%= Html.Encode(_currentString) %>
            <br />
        <% } %>

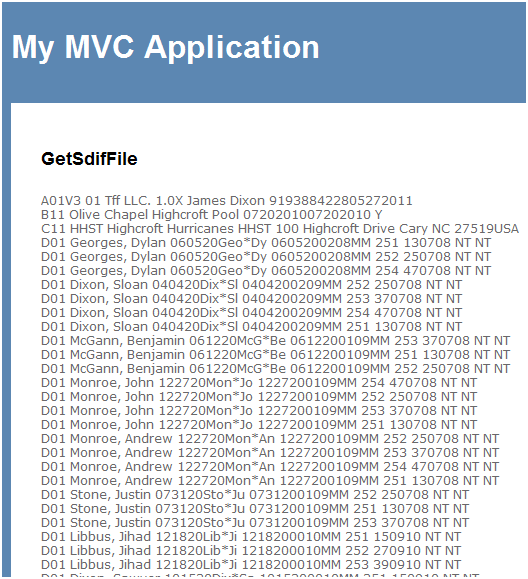

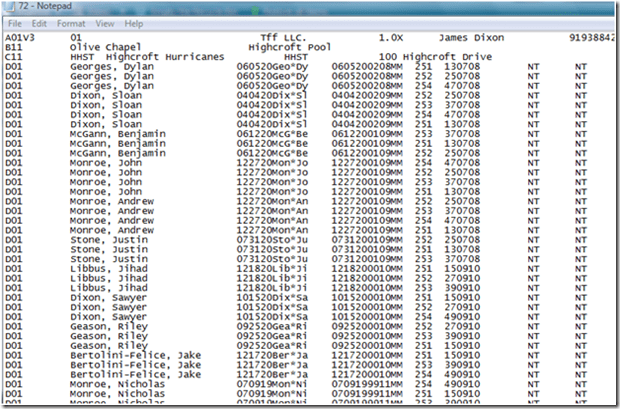

And here are the results:

So it is a start – I guess they could copy/paste the contents of the page. However, the User Case is for them to click a button and get a .sdif file that saves to their file system (via, I assume, a Save Dialog box).

I wrote a new function that returns JSON:

        public JsonResult CurrentMeetSdifFile()
        {
            MeetSetupFactory factory = new MeetSetupFactory();
            Collection<string> collection = factory.CreateMeetSetUp(72);
            JsonResult result = new JsonResult();
            result.Data = collection;
            result.JsonRequestBehavior = JsonRequestBehavior.AllowGet;
            return result;
        }

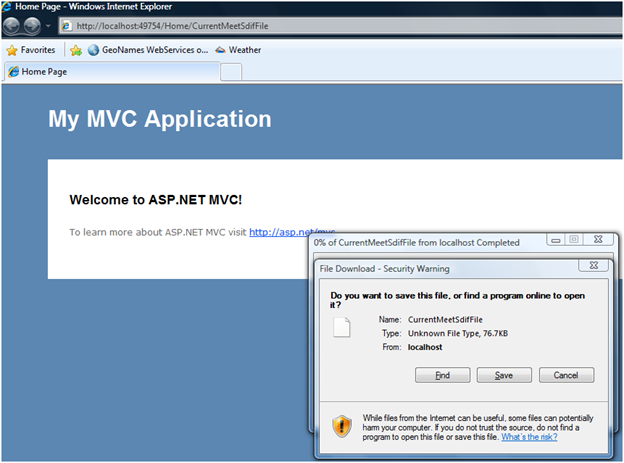

Since the browser doesn’t know what to do with JSON (I only tested in IE), then you get a save dialog box:

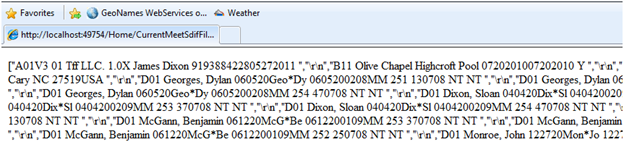

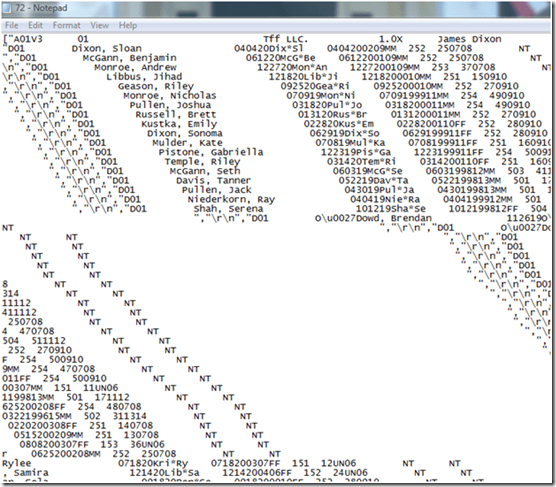

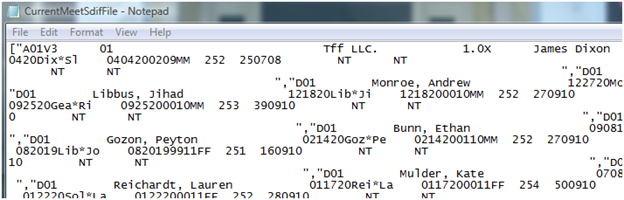

Saving that to the desktop, I open in note pad and get the following results:

The results are losing their line formatting.

This is the right track – but I have bit more work to do.

My 1^st step was to add a parameter of the actual meet that the user wants:

        public JsonResult CurrentMeetSdifFile(int meetId)
        {
            MeetSetupFactory factory = new MeetSetupFactory();
            Collection<string> collection = factory.CreateMeetSetUp(meetId);
            Etc…
        }

I then tried it from the browser:

Ugh, it looks like with the default routing engine, I need to make the parameter have the name id. I have a choice. I can either add a new route with an explicit meetId or I can use the id variable name. I chose option B as a path of least resistance:

        public JsonResult CurrentMeetSdifFile(int id)
        {
            MeetSetupFactory factory = new MeetSetupFactory();
            Collection<string> collection = factory.CreateMeetSetUp(id);
            JsonResult result = new JsonResult();
            result.Data = collection;
            result.JsonRequestBehavior = JsonRequestBehavior.AllowGet;
            return result;
        }

With the routing set up, I now need to fix the JSON output to stick a new line after each string in the collection.

My 1^st attempt was just to throw an Environment.NewLine into the Json result:

Yikes! It looks like I am mixing formatting. “\r\n” is coming down as a literal value. I need a way to tell notepad that they are line breaks.

I binged around a bit and looked at attack overflow. This post seems to have the answer. I tried to add

result.ContentType = "text/html";

But then the browser displayed the data:

Note the “\r\n” is still there.

I then tried some other ways of breaking (using the \\n for example), nothing.

I then stepped back and thought that I was approaching the problem incorrectly. Instead of sending back JSON from the function, what if I sent something else? A quick tour through MSDN showed me a file result class. That is what I need and here is an example of my question.

A quick run through the overloads of the method, I realized that all I have to do is to convert the string collection into a FileStream and then send it out via the File class. I used the FileStreamResult class and the rest was pretty easy to wire up:

        public FileStreamResult CurrentMeetSdifFile(int id)
        {
            MeetSetupFactory factory = new MeetSetupFactory();
            Collection<string> collection = factory.CreateMeetSetUp(id);
            StringBuilder stringBuilder = new StringBuilder();
            foreach(string _currentString in collection)
            {
                stringBuilder.Append(_currentString);
                stringBuilder.Append(Environment.NewLine);
            }

            byte[] byteArray = Encoding.ASCII.GetBytes(stringBuilder.ToString());
            MemoryStream stream = new MemoryStream( byteArray );
            FileStreamResult fileStreamResult = new FileStreamResult(stream,"text/plain");
            return fileStreamResult;

        }

And if I want to get the popup, I change the output format to “.sdif” and I get the dialog box with the data formatted correctly.

And boom goes the dynamite…

Filed under .NET 4.0: Parallelism, EF2, etc..., MVC

MVC Route Constraints

May 31, 2011 Leave a comment

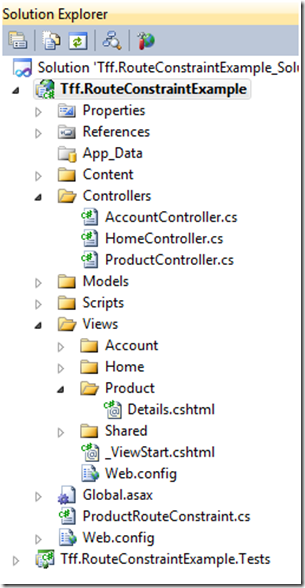

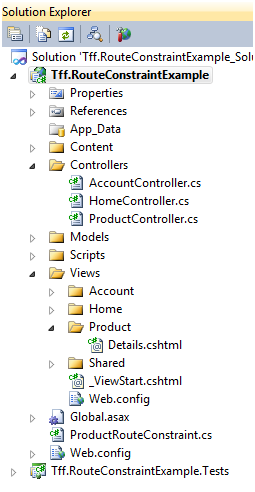

I started to dig into MVC3 routing a bit more over the weekend. I came across some routing constraints and realized that there is a clear progression. I created an out of the box MVC3 web application (I am using Razor) and then added a Product Controller with the default methods and 1 View for the Details method. I made 1 change to the out of the box convention – I changed the name of the int parameter to the Details method to productId.

The Details controller method pushes the parameter back out to the View:

        public ActionResult Details(int productId)
        {
            return View(productId);
        }

and the view parrots the productId back to the user:

@{
    ViewBag.Title = "Details";
    Layout = "~/Views/Shared/_Layout.cshtml";
}

<h2>Details</h2>
<br />
You Entered =  @Model

I then dropped into Global.asax to work with the constraints. The first thing I did was to add a route to the routing table to account for the productid parameter:

            routes.MapRoute(
                "Product",
                "Product/{productId}",
                new { controller = "Product", action = "Details" }
            );

This worked fine to a point. Product/1 resolved:

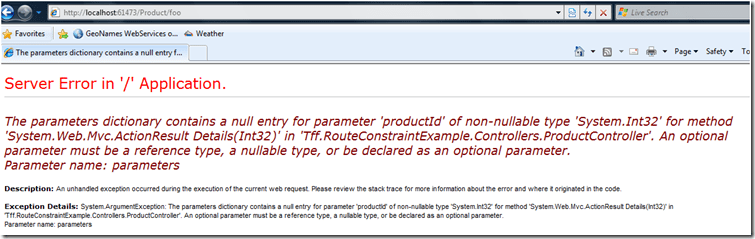

but Product/foo was allowed by the routing engine and the method threw an error:

To handle this malformed parameter, I added a regular expression to the constraint definition (using Stephen Walter’s blog post as an example:

            routes.MapRoute(
                "ProductWithConstraint",
                "Product/{productId}",
                new { controller = "Product", action = "Details" },
                new { productId = @"\d+" }
            );

Now, when Product/foo comes in, I got a 404.

The next scenario I wanted to handle was that only some integers are allowed as a parameter. For example, perhaps only products that are in stock are allowed – which means that you need to do a database call before defining the route constraint definition. To that end, I created a new class that inherited from IRouteConstraint (based on Yuri Nayyeri blog post):

    public class ProductRouteConstraint: IRouteConstraint
    {
        public bool Match(HttpContextBase httpContext, Route route, string parameterName, RouteValueDictionary values, RouteDirection routeDirection)
        {
            if ((routeDirection == RouteDirection.IncomingRequest)
                && (parameterName.ToLower(CultureInfo.InvariantCulture) == "productid"))
            {
                int productId = 0;
                try
                {
                    productId = Convert.ToInt32(values["productId"]);
                    if (productId > 0 && productId < 10)
                    {
                        return true;
                    }
                }
                catch (FormatException formatException)
                {
                    return false;
                }
            }
            return false;
        }
    }

I then added this constraint to the routing table:

            routes.MapRoute(
                "ProductWithConstraintClass",
                "Product/{productId}",
                new { controller = "Product", action = "Details" },
                new { productId = new ProductRouteConstraint() }
            );

And I got the desired result – products less than 0 or greater than 10 returned a 404.

So the progression in my mind is:

No constraints
Reg Ex constraints in the Global.asax
Create a class that implements IRouteConstraint

I my mind, I would rather skip #2 and go to #3 altogether. Having all of the logic encapsulated in 1 class seems cleaner and not having the Global.asax mucked up with custom defs makes for a more maintainable solution.

Filed under .NET 4.0: Parallelism, EF2, etc..., MVC

MVC, LINQ, and WinHost

May 3, 2011 Leave a comment

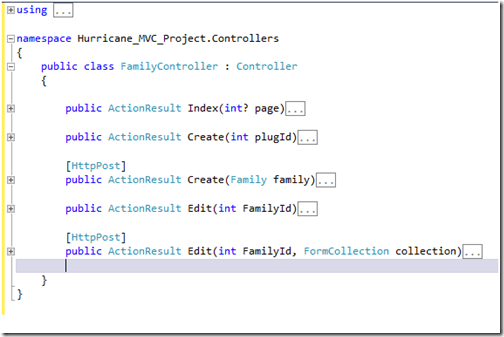

I love MVC. I recently had to make some changes to the swim team website to get ready for the 2011 season. Because there was a nice SOC enforced by MVC, I simply had to add a couple of new controllers with some basic CRUD:

add their associated views, and then wire up to my factory using my POCOs:

        public ActionResult Index(int? page)
        {
            FamilyFactory familyFactory = new FamilyFactory();
            IQueryable<Family> families = familyFactory.GetAllFamilies()
                .OrderBy(family => family.FamilyDesc)
                .AsQueryable <Family>();

            const int pageSize = 10;
            var paginatedFamilies = new PaginatedList<Family>(families, page ?? 0, pageSize);

            return View(paginatedFamilies);
        }

(note that I used the paginated list from Nerd Dinner)

Boom goes the dynamite.

Upon reflection, you can really see how useful using POCOs are when you have to extend your application. That upfront cost 2 years ago is paying huge dividends now.

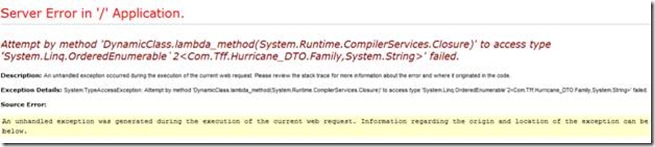

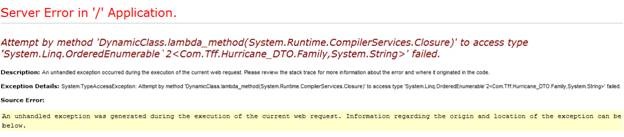

I did run into 1 small hiccup when I deployed to WinHost. I received the following error:

After some digging (this error does not Google well), I added this:

<trust level="Full" />

To System.Web and things corrected.

Filed under .NET 4.0: Parallelism, EF2, etc..., MVC

Globalizing the carpool app

December 21, 2010 1 Comment

I had a question about how to internationalize the carpool app. I ran through the exercise to try out the Globalization and Localization features of the .NET framework.

I 1^st I added a couple of resource files:

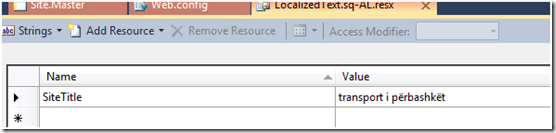

Next, I added a simple string to test:

Next, I added a reference in the markup on the site.master:

            <div id="title">
                <h1>
                <asp:Label ID="LabelMainTitle" runat="server" Text="<%$ Resources:LocalizedText, SiteTitle %>"></asp:Label>
                </h1>
            </div>

Next, I updated the web.config file:

<globalization enableClientBasedCulture="true" uiCulture="auto" />

Finally, I changed the browser settings:

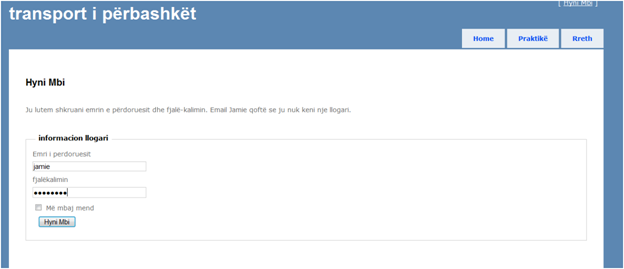

And Boom goes the dynamite:

So the next step is adding the strings to the resource file…

I am using this site for translations.

A couple of random thoughts about the process:

1) ActionLink – need to refer to the class explicitly:

                <ul id="menu">
                    <li><%: Html.ActionLink(Resources.LocalizedText.HomeTab, "Index", "Home")%></li>
                    <li><%: Html.ActionLink(Resources.LocalizedText.PracticeTab , "Index", "Practice")%></li>
                    <li><%: Html.ActionLink(Resources.LocalizedText.AboutTab, "About", "Home")%></li>
                </ul>

And I don’t know why no inteliisense from the namespace to class, but there is intliisense from the class to the property name.

2) I appreciate the split screen feature of VS2010:

3) I ran into a problem with a new HTML Helper Controls in MVC:

<%: Html.LabelFor(model => model.Date) %>

This is how it renders:

Apparently, the LabelFor does not support globalization in the view. That means I would need to add the LocalizedDisplayName attribute to each of the POCOs as recommend here OR remove the LabelFor and hand code labels. Since I am not interested in creating something outside of the base MVC API, I split out the labels like so:

From This:

<%: Html.LabelFor(model => model.Date) %>

To This:

<%: Html.Label(Resources.LocalizedText.DateHeader)%>

After spending a couple of hours associating text to the resource files, I was done

Here is the login screen:

And the main page:

Filed under Globalization, MVC

Web.Config Transforms

November 9, 2010 Leave a comment

I wanted to dig into Web.Config transformations a bit more. I read a couple of articles here and here and decided to try it in a “Hello World” MVC2 project. I created a new MVC2 project and found the two Web.xxx.config files:

I then created a new setting variable in the Web.Config file:

1   <appSettings>
2     <add key="myValue" value="default"/>
3   </appSettings>
4

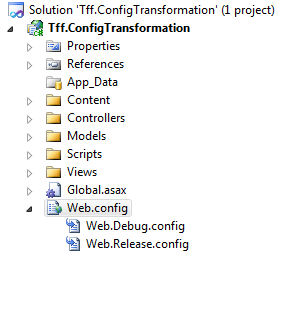

I then added a transform to the Debug and Release Files.

Debug:

1   <appSettings>
2     <add key="myValue" value="Debug" xdt:Transform="SetAttributes" xdt:Locator="Match(myValue)"/>
3   </appSettings>
4

Release:

1   <appSettings>
2     <add key="myValue" value="Release" xdt:Transform="SetAttributes" xdt:Locator="Match(myValue)"/>
3   </appSettings>
4

I then added some code to show the value on the main page:

1         public ActionResult Index()
2         {
3             ViewData["Message"] = String.Format("The Value in Web.Config is {0}", ConfigurationManager.AppSettings["myValue"].ToString());
4
5             return View();
6         }
7

I then hit F5, expecting the Debug value replace the default value in the web.config

Darn, the transform is not being recognized.

Filed under MSFT Tooling: VS, TFS, SQL Server, etc..., MVC

MVC2 && EF4.0 Cascading Drop Down List

October 26, 2010 Leave a comment

I am trying to create a cascading drop down in MVC2. This is a simple application so I am using Entity Framework 4.0 classes in my User Layer (instead of the usual POCOs).

I looked at Steve’s Walther’s solution(s) here: the problem is that it doesn’t work – you get an object null reference b/c the page isn’t done loading (I think). I tried putting it into JQuery, which I know waits to fire until the DOM is loaded, but I started getting too deep into the port.

I then looked at other people’s attempts like here and here – lots of code, little explanation and it doesn’t work without modifications.

I then went back to a project that I created does an Ajax call for the second drop down and tried to create my own solution.

Here is the initial controller:

1         public JsonResult GetDoctrinesForAnIssue(int issueId)
2         {
3             IDoctrineFactory doctrineFactory = new DoctrineFactory();
4             List<Doctrine> doctrines = doctrineFactory.GetDoctrines(issueId);
5             return Json(doctrines.ToList());
6         }
7

The problem is that I am using an EF class directly in the JSON return. I am getting a missing object context because the entire graph is not loading and the context is disposed when it is going back to rehydrate – one of limitations of EF is that the instantiated class has to exist with the object context that created it so when that context goes away, you are stuck.

When I put the entire graph in to see, I got a circular reference error. Ugh

1                 var doctrineQuery = (from doctrine in patentEntities.Doctrines
2                                      .Include("Issue")
3                                      .Include("Comment")
4                                      .Include("Comment.Claim")
5                     .etc….
6                                      select doctrine).ToList<Doctrine>();
7                 return doctrineQuery;
8

I then thought about some of my other projects that I have worked on lately. I used POCOs extensively so this kind of problem didn’t surface – the downside is that I would then need to code up the POCOs, the Factories, and the mapping between the POCOs and EF classes – which is a bit overkill for this project. I then thought of a third way of using a dynamic object just for this drop down lists – outside of the factory, inside the controller:

1         public JsonResult GetDoctrinesForAnIssue(int issueId)
2         {
3             IDoctrineFactory doctrineFactory = new DoctrineFactory();
4             var query = (from doctrine in doctrineFactory.GetDoctrines(issueId)
5                          select new { doctrine.DoctrineId, doctrine.DoctrineName }).ToList();
6
7             return Json(query);
8         }
9

Add a little LINQ and boom goes the dynamite…

Filed under .NET 4.0: Parallelism, EF2, etc..., MVC

Carpool Project: Part #15

October 13, 2010 Leave a comment

I finished the carpool website – here is a quick summary of things I learned:

· Unit tests can’t depend on db data – refactoring violate data sucks

· I need to refactor my Unit Tests

· I need to learn more about MVC gators

· I need to learn more on LINQ

· Flattened POCOs are not needed in MVC

I also realized:

· Only having 5-6 custom categories in Live.Spaces sucks

· You need unique names for your photos in Live.Spaces. I was overwriting earlier posts’ pictures when I added new posts that had the same picture name

My next project will be taking the carpool project and making it a WM application.

Note that my Live.Spaces blog was moved to WordPress in October. The formatting was so screwed up I just re-published the content. I am using Live.Writer with a couple of plug-ins – which works well enough.

Filed under MVC

Carpool Project: Part #14

October 13, 2010 Leave a comment

I had a new requirement pop up today. Seems that some users only want to see the carpools/practices that their kids are in – versus the entire set. Using my Alot based design, I wanted a function where the userName came in and the week’s carpools came out. I added the needed table (DriverSwimmer) to make the association between the user and swimmers and then though about my LINQ. I first coded up this solution:

 1         public static List<Carpool> GetCarpools(DateTime startDate, DateTime endDate, string userName)
 2         {
 3             List<Carpool> carpools = new List<Carpool>();
 4
 5             using (CarpoolEntities carpoolEntity = new CarpoolEntities())
 6             {
 7                 var carpoolQuery = (from carpool in carpoolEntity.Carpool_Carpool
 8                                          .Include("Carpool_Driver")
 9                                          .Include("Carpool_Driver.Carpool_DriverSwimmer")
10                                          .Include("Carpool_CarpoolSwimmer")
11                                          .Include("Carpool_CarpoolSwimmer.Carpool_Swimmer")
12                                          .Include("Carpool_CarpoolPractice")
13                                          .Include("Carpool_CarpoolPractice.Carpool_Practice")
14                                          .Include("Carpool_CarpoolPractice.Carpool_Practice.Carpool_SwimGroupPractice")
15                                          .Include("Carpool_CarpoolPractice.Carpool_Practice.Carpool_SwimGroupPractice.Carpool_SwimGroup")
16                                          .Include("Carpool_CarpoolPractice.Carpool_Practice.Carpool_SwimGroupPractice.Carpool_SwimGroup.Carpool_SwimTeam")
17                                     where carpool.CarPoolDate >= startDate
18                                      && carpool.CarPoolDate <= endDate
19                                      && carpool.Carpool_Driver.UserName == userName
20                                     orderby carpool.CarPoolDate
21                                     select carpool);
22                 foreach (Carpool_Carpool carpool_carpool in carpoolQuery)
23                 {
24                     carpools.Add(MapCarpool(carpool_carpool));
25                 }
26                 string s = EntityExtensionMethods.CustomExtensions.ToTraceString(carpoolEntity);
27
28             }
29             return carpools;
30
31
32         }
33

The problem is that nothing is coming back. When I looked at the SQL being generated, it was null. I wonder if there are some phrases that are so complex that EF can’t figure it out. I thought of a great product/tool – you put in the sql you want and out comes the Linq. In any event, I decided to take a shortcut – I would get a large result set back and just parse it down for the user info.

1             var query = (from s in swimmers
2                          select s.SwimGroup).Distinct();
3             List<SwimGroup> swimGroups = query.ToList<SwimGroup>();
4

I combined to:

1             List<SwimGroup> swimGroups = ((from s in swimmers
2                           select s.SwimGroup).Distinct()).ToList<SwimGroup>();
3

And then I wrote this:

1             var x = (from c in carpools
2                      select c.Practices).ToList<Practice>();
3

and got the following error:

1 'System.Collections.Generic.IEnumerable<>' does not contain a definition for 'ToList' and the best extension method overload 'System.Linq.ParallelEnumerable.ToList<TSource>(System.Linq.ParallelQuery<TSource>)' has some invalid arguments

Apparently, ToList<>() does not have a ToList<>() method. I changed it to:

1             List<Practice> practices = (List<Practice>)(from c in carpools
2                                         select c.Practices);
3

And the compiler was happy

I then completed my 1^st attempt: note that I have 2 sets of swimgroups – those associated with the drivers (via their swimmers) and those associated with the practices (via their carpool):

 1         public static List<Carpool> GetCarpools(DateTime startDate, DateTime endDate, string userName)
 2         {
 3             List<Swimmer> swimmers = DriverFactory.GetDriver(userName).Swimmers;
 4             List<SwimGroup> driverSwimGroups = ((from s in swimmers
 5                           select s.SwimGroup).Distinct()).ToList<SwimGroup>();
 6
 7
 8             List<Carpool> carpools = GetCarpools(startDate, endDate);
 9             List<Practice> practices = (List<Practice>)(from c in carpools
10                                         select c.Practices);
11             List<SwimGroup> practiceSwimGroups = (List<SwimGroup>)((from p in practices
12                                                    select p.SwimGroups).Distinct());
13
14             return null;
15
16         }
17

I then needed to compare the swimGroup list – if they are in both, then the carpool should be returned like this:

1 List<SwimGroup> commonSwimGroups = (List<SwimGroup>)practiceSwimGroups.Union(driverSwimGroups);

However, I didn’t use this. I kludged up a 5-deep for..each nest of spaghetti code:

 1         public static List<Carpool> GetCarpools(DateTime startDate, DateTime endDate, string userName)
 2         {
 3             List<Swimmer> swimmers = DriverFactory.GetDriver(userName).Swimmers;
 4             List<SwimGroup> driverSwimGroups = ((from s in swimmers
 5                           select s.SwimGroup).Distinct()).ToList<SwimGroup>();
 6
 7             List<Carpool> carpools = GetCarpools(startDate, endDate);
 8
 9
10             List<Carpool> returnValue = new List<Carpool>();
11             foreach(Carpool carpool in carpools)
12             {
13                 foreach (Practice practice in carpool.Practices)
14                 {
15                     foreach (SwimGroup practiceSwimGroup in practice.SwimGroups)
16                     {
17                         foreach (SwimGroup driverSwimGroup in driverSwimGroups)
18                         {
19                             if (practiceSwimGroup == driverSwimGroup)
20                             {
21                                 returnValue.Add(carpool);
22                             }
23                         }
24                     }
25                 }
26             }
27
28             return returnValue;
29

I have to believe there is a better way with some LINQ. I will investigate – until then, at least it is working…

Filed under MSFT Tooling: VS, TFS, SQL Server, etc..., MVC

Carpool Project: Part #13

October 13, 2010 Leave a comment

I am closer to the end of the development cycle than the beginning and I have run into a new problem. I created a method that Inserts new practices in the PracticeFactory. When I test it against the server, I get the following error

1 Test method Com.Tff.Carpool.Domain.Tests.PracticeFactoryTest.InsertPracticeTest threw exception:
2 System.Data.UpdateException: An error occurred while updating the entries. See the inner exception for details. ---> System.Data.SqlClient.SqlException: The conversion of a datetime2 data type to a datetime data type resulted in an out-of-range value.
3 The statement has been terminated.
4

I searched MSDN/StackOverflow and I came up with the EF needing to be 2005, not 2008 (here) I switched it and got the same problem. This solution doesn’t make sense to me – b/c the data server is 2008. I then decided to look at the SQL that EF is generating to see if I can find an error in that code. There is a method called ToTraceString() that I can use to inspect the SQL generated – the trick is to locate what object the method belongs to – since it is not part of ObjectContext. The MSDN example here is not much help – I wonder if EF does not expose the method? In addition, I can’t set up tracing on the remote server – it is hosted on WinHost. I then found this post which solved the problem – it is just a feature gap in EF.

Once I had this code up and running, I looked at the results:

 1 insert [dbo].[Carpool_Practice]([PracticeDate], [PracticeStartTime], [PracticeEndTime], [DrylandIndicator])
 2 values (@0, @1, @2, @3)
 3 select [PracticeId]
 4 from [dbo].[Carpool_Practice]
 5  where @@ROWCOUNT > 0 and [PracticeId] = scope_identity()
 6 @0 = 9/13/2010 7:17:53 AM
 7 @1 = 1/1/0001 12:00:00 AM
 8 @2 = 1/1/2010 7:00:00 PM
 9 @3 = True
10

And here is the bug:

1         private static void MapPractice_Practice(Carpool_Practice practiceToInsert, Practice practice)
2         {
3             practiceToInsert.DrylandIndicator = practice.DryLandIndicator;
4             practiceToInsert.PracticeDate = practice.Date;
5             practiceToInsert.PracticeEndTime = practice.EndTime;
6             practiceToInsert.PracticeStartTime = practiceToInsert.PracticeStartTime;
7         }
8

I changed it to this:

1     practiceToInsert.PracticeStartTime = practice.StartTime;

And it ran. I was assigning the EF value to itself.

Filed under Misc coding, MVC

← Older posts

Jamie Dixon's Home

Smart Nerd Dinner

Export .sdif file to the client’s desktop

MVC Route Constraints

MVC, LINQ, and WinHost

Globalizing the carpool app

Web.Config Transforms

MVC2 && EF4.0 Cascading Drop Down List

Carpool Project: Part #15

Carpool Project: Part #14

Carpool Project: Part #13

Categories

Recent Posts

Archives

Blogroll

Meta
